Description

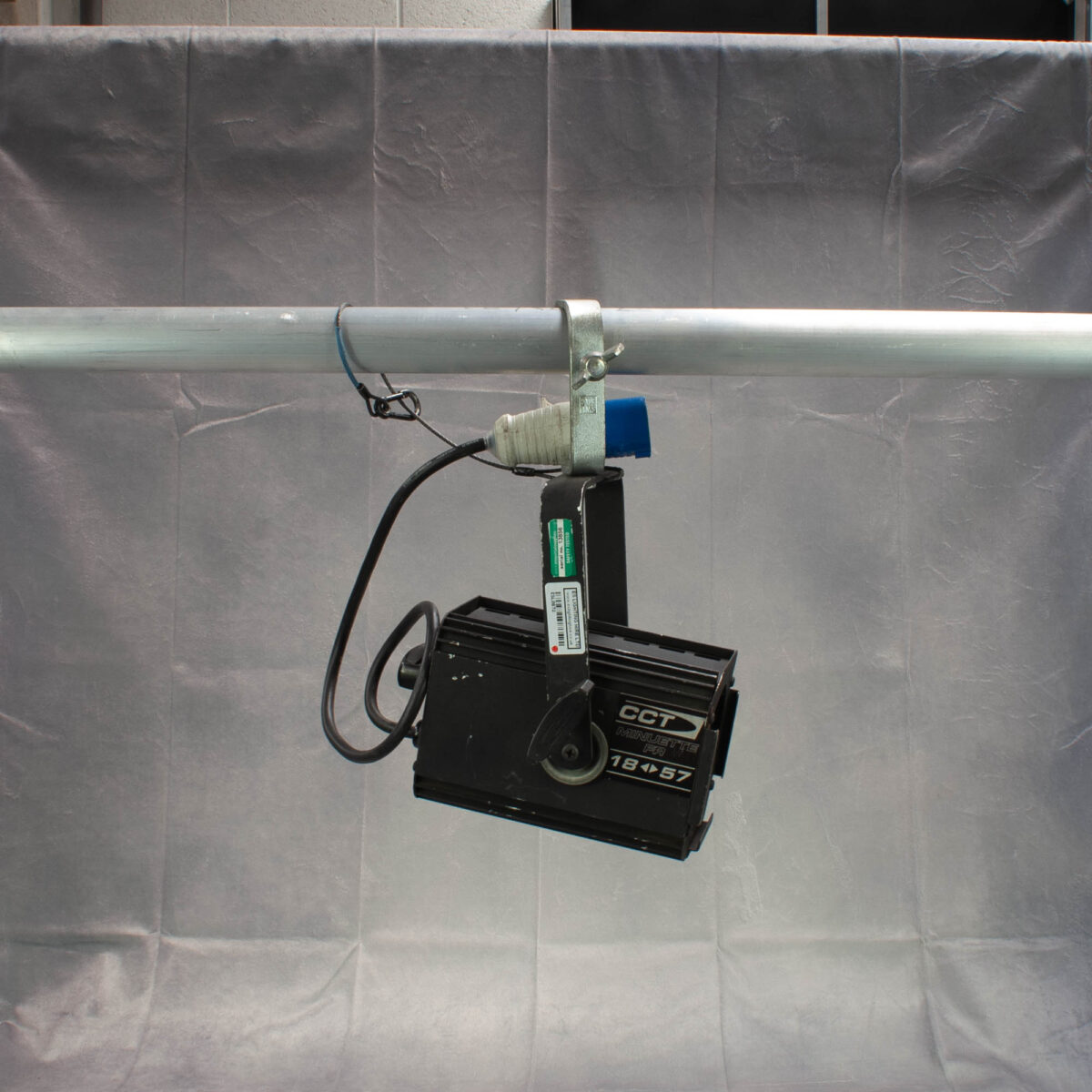

The CCT Minuette Fresnel is the smallest, lightest and most versatile luminaire in the Minuette range. It is equally at home on the stage of the largest theatres, a school drama stage, or lighting an exhibition. Its soft-edged controllable beam is very even and well defined. The Fresnel lens has been especially designed for the unit and is very efficient.
The large beam angle ranges from 18 to 57 degrees, and the optional accessory of a rotatable four-leaf barn door gives complete control of the beam shape. The beam angle is adjusted by a heat resistant knob under the unit. Sliding this toward the lens increases the beam angle – away from the lens reduces it. The CCT Minuette Fresnel also features a heat resistant rear handle while the “T” shaped tilt locking handle gives easy, cool control when adjusting the unit’s position.
Specifications
- Lamp: 650W
- Beam Angle: 18° – 57°
- Height: 142mm
- Width: 200mm
- Depth: 250mm
- Weight 2.2kg
Additional information about the CCT Minuette Fresnel can be found on the CCT website.
