The Core Point30 LED Uplight is a very high intensity, vivid-colour battery-powered LED light suitable for both outside and inside use.

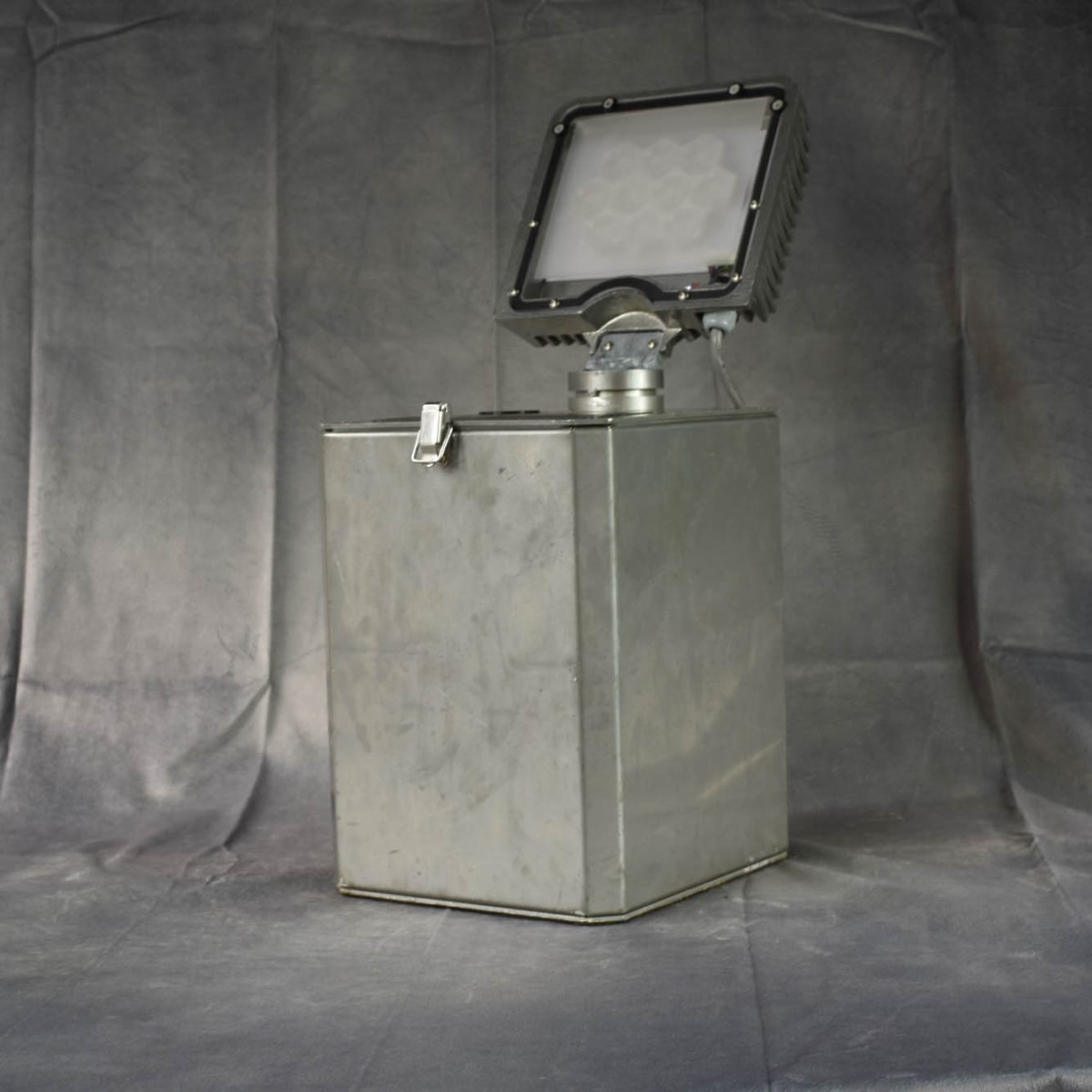

Core Point 30



The Core Point 30 LED battery uplight is a very high intensity, vivid-colour battery-powered LED light with wireless control. In addition, with its rugged build and rated waterproof (IP65), it is perfect for outdoor, as well as indoor use. With an inbuilt Li-Ion Battery, which lasts in excess of 12 hours, the Core Point 30 LED Battery Uplight is perfect for use in areas where cables are unsuitable. Alternatively, these fixtures are suitable for mains powered use. All in a compact 25cm cube rugged sized case.

At a full 2500 lumens, these fixtures will light up large trees, architectural features, pathways, marquees & wall-washing. The RGBW Colour Mixing Head uses Cree and Seoul Semiconductor high-brightness LED chips. This creates strongly saturated colours, mixed using optic lenses with uniform colour rendering. Thus it is possible to create more than 4.2Bn colour shades, including hues of white, by using 4-colour channels. Furthermore, the Core Point 30 LED is able to replicate both warm and cool colour temperatures of white light.

The unit is fitted as standard with a clear polycarbonate lens allowing a 12-degree beam angle using 10 LED colour-mixing optics. The diffusers are extremely efficient with more than 90%
transmission efficiency. The update rate for the LED’s is a fast 488Hz. The resolution for the colour change is 13bits providing a very smooth dimming curve. This fast combination makes the units capable of lighting in TV work.

The Core Point 30 LED uplight features various control options including wireless DMX control with master/slave upgrade. In addition, there are DMX In/Out connections and WiFi remote control option using most WiFi-enabled mobile devices with a browser.


  • Light Source: RGB plus White LEDs
  • Beam Angle: 15 Degree
  • DMX: Wireless DMX Control
  • Input/Output: 5 Pin DMX
  • Accessories: 2mtr 16A T Line – Powercon Cables & 13A Plug-16A Jumpers
  • Weight: 35.8kg
  • Dimensions (mm): 250w x 255d x 230h

The user guide for the Core Point 30 LED Battery Uplight can be found on the Core Lighting website.

Additional information

Weight 8 kg
Dimensions 26 × 25 × 23 cm


Power Input

13A PowerCon, 16A PowerCon, Battery

Lamp Type
