Description

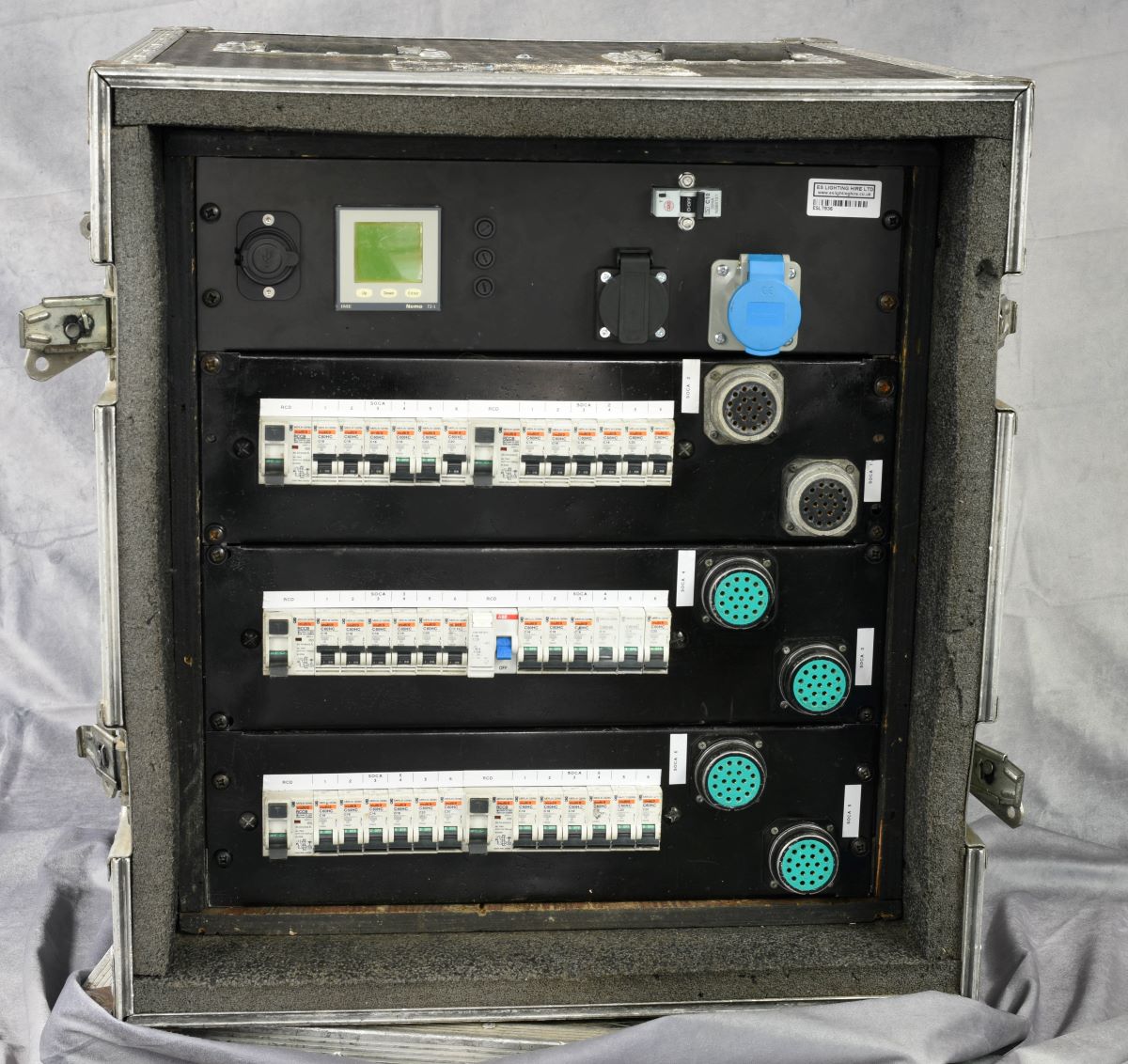

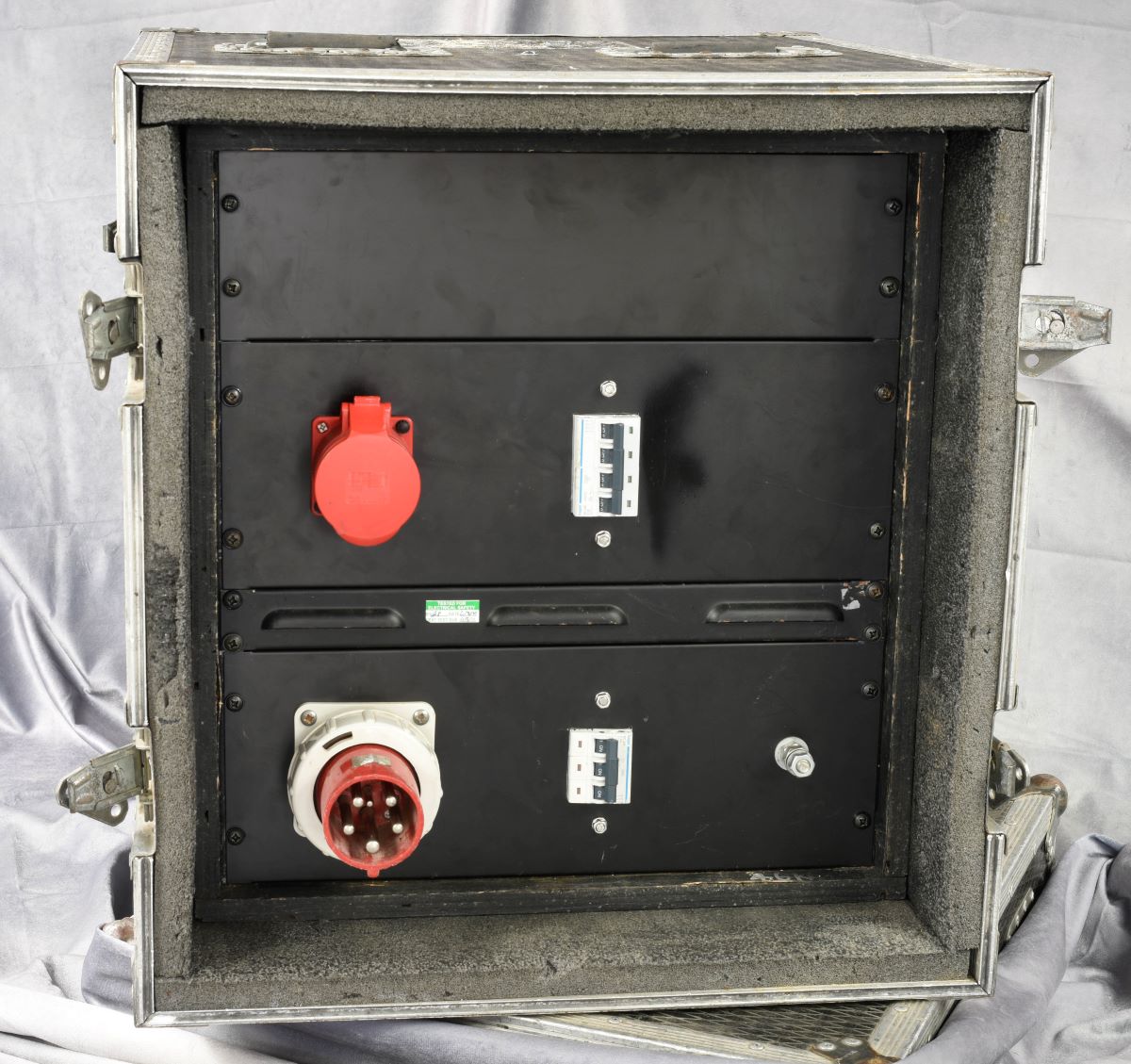

This 63A 400V Hotpower Rack is a modular distribution board. It is ideal for all stage and event environments. Each phase is fitted with 2 Socapex outlets. Each of these outlets has MCB protection. In addition, there is RCD protection overall. The Hotpower Rack is also fitted with a 32 Amp three-phase outlet. Finally, there is both a 16 Amp 230 Volt socket and a 13 Amp 230 Volt socket fitted to the hot power rack.
The Hotpower rack is fitted into a tour-grade flight case, allowing for ease of moveability.
Specification
- 2 x 6 Way Socapex per phase
- Each outlet is MCB protected
- Overall RCD per Socapex
- 32 Amp 400 Volt Outlet – 4 Pole MCB Protection for Motor Control etc
- One x 16 Amp 230 Volt socket for control power
- 13 Amp 230 Volt socket for control power
- Multifunction Power Meter so you can see what the load on the board is
- USB Charging port built-in
As well as the 63A 400V Hotpower Rack Power distribution board, we have several other boards available in various configurations. For example, the 63A 400V Type 1
