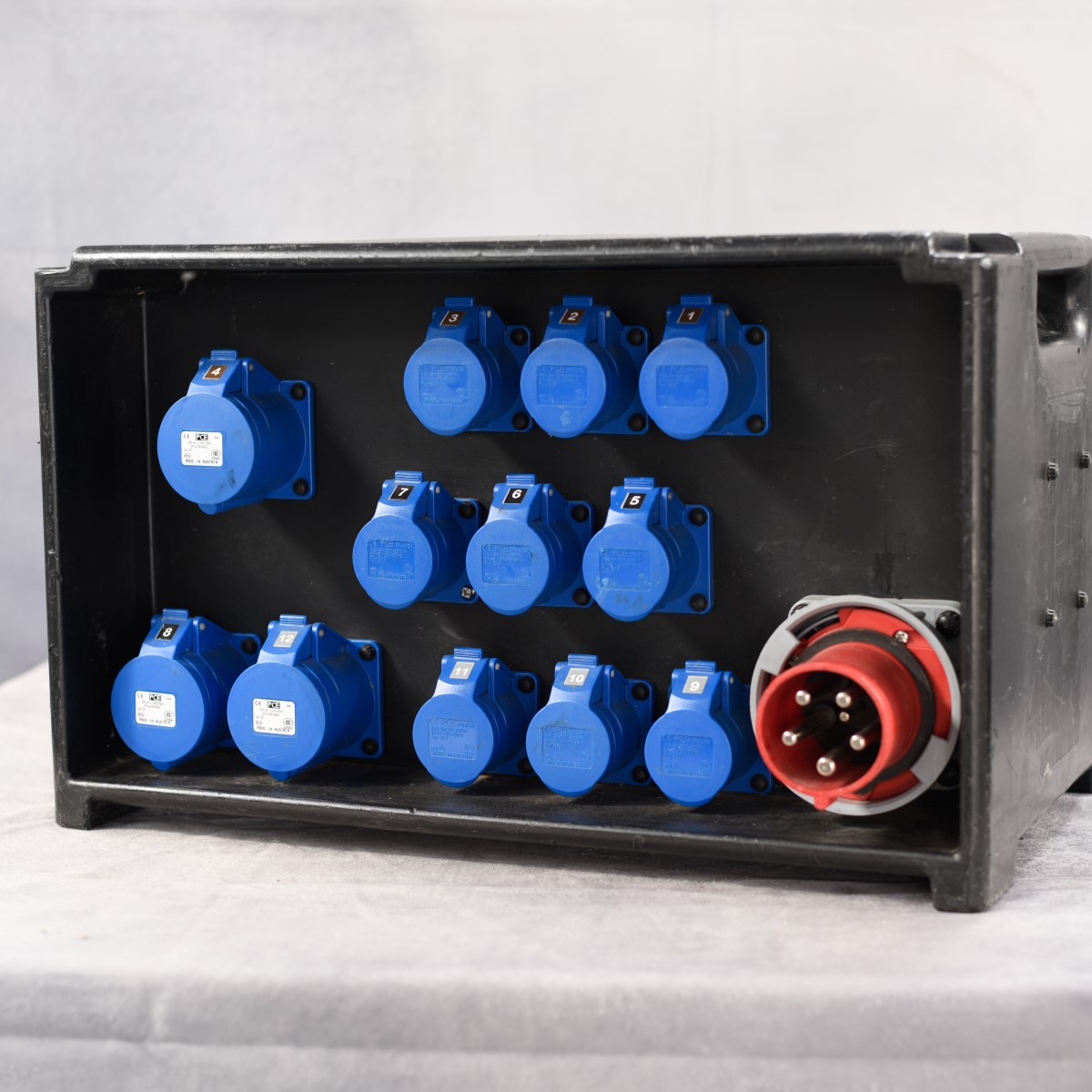

The 63A 400V Type 2 Distribution Board is robust, lightweight and made of shock-resistant thermoplastic. The main features of these distribution boards are robustness, mobility and operational safety. Furthermore, the board is weather resistant and age resistant. Distribution boards are designed to distribute temporary power from one area to another. The simple plug and play design mean that the board is easy to use.
The enclosure is fabricated from black 10mm thick 300-grade high-density polyethene. Therefore offering good impact resistance, chemical resistance and high rigidity. The density of 0.96 g/cm³, less than 0.01% moisture absorption, service temperature from -50 to +80°C with greater than 1014 surface resistance. IK09 Rated.
The Type 2 Distribution Board is fitted with the following outputs per phase. Additionally, each phase features an overall RCD.
- 1 x 32A 230v
- 4 x 16A 230V
