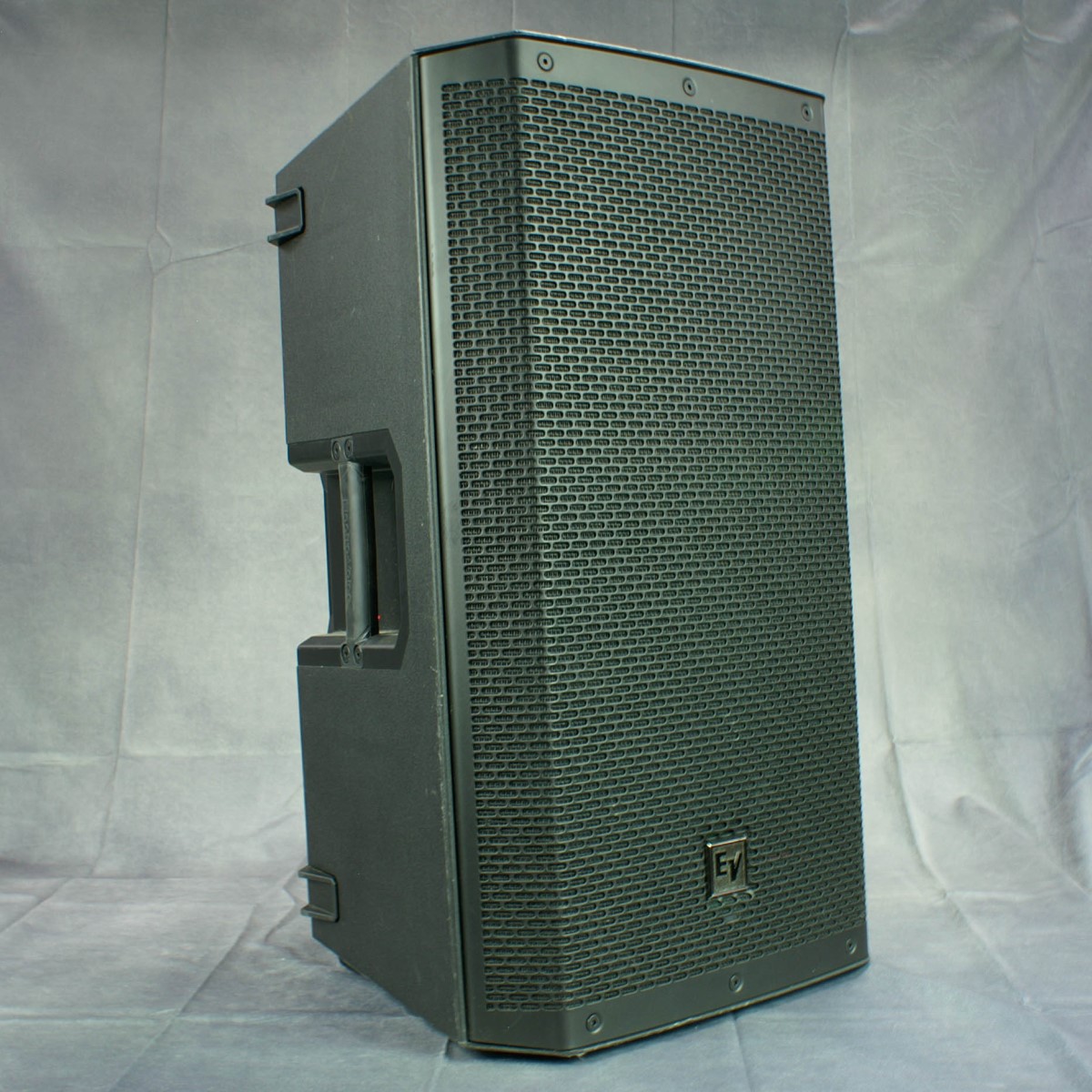

ELECTRO-VOICE EV ZLX 12P SPEAKER

The compact, lightweight EV ZLX 12P was designed to give you power and performance beyond the scope of other small-format loudspeakers.

EV ZLX 12P

Share

Share on facebook
Share on whatsapp
Share on twitter
Share on email
Share on pinterest

Description

The Electro-Voice EV ZLX 12P speaker features a compact, lightweight design. These 1000W speakers were designed to give power and performance beyond the scope of other small-format loudspeakers. This, therefore, makes it a standout choice for smaller-venue sound reinforcement or stage-monitoring. Features a 12″ woofer and 1.5″ compression driver.

Electro-Voice have added a very clever menu display on the back of the speaker that lets you choose the function of the speaker and then adjusts the speaker’s EQ to match the setting. These allow you to get the best sound in the shortest time.

Features of the Electro-Voice EV ZLX 12P

  • Equipped with: 12″ Woofer and 1.5″ compression driver
  • Power: 1000 W peak, 250 W continuous power
  • Class D amplifier
  • Built-in DSP with Display
  • Dispersion angle: 90° x 60°
  • Frequency Response – 65 Hz – 18 kHz1
  • Frequency range: 55 – 20,000 Hz
  • Maximum level: 125 dB
  • 2 Microphone / line XLR / jack combo inputs
  • XLR output
  • Polypropylene plastic housing
  • Dimensions (H x W x D): 610 x 356 x 356 mm
  • Weight: 15.6 kg

For further information regarding the Electro-Voice EV ZLX 12P, please see the Electro-Voice website

Additional information

Weight 15.6 kg
Dimensions 36 × 36 × 61 cm
Power Input

13A IEC, 16A IEC

User Manual

Download
