Description

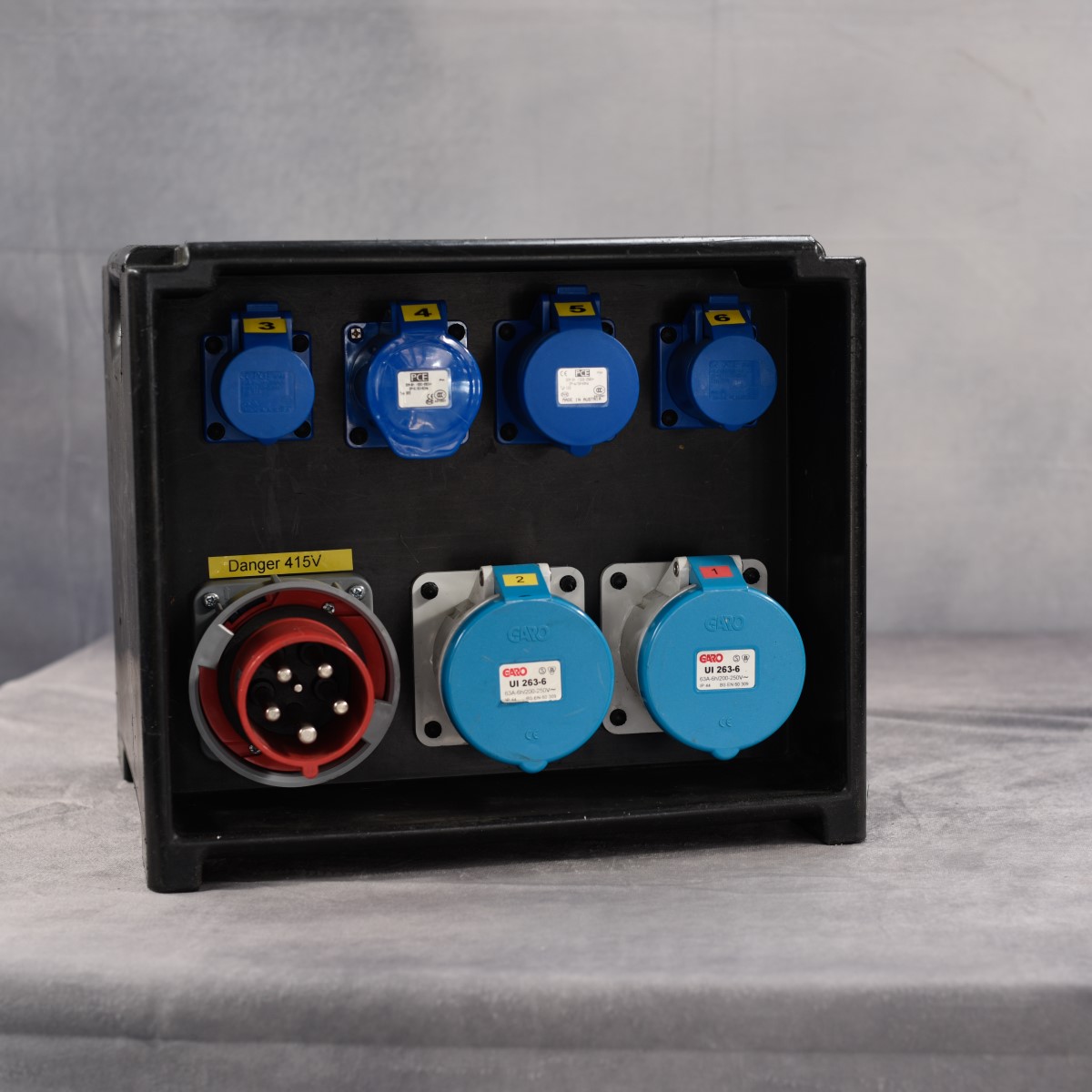

The 63A 400V Type 4 distribution box is designed to distribute temporary power from one area to another. All of our distribution boards and boxes are easy to relocate across site and blend in well with the surrounding environment.
In addition, we offer a variety of other distribution boxes are available with different configurations. This box is built with a 63A 400V input. The box is completed with 2 x 63A 230V, 2 x 32A 230V and 2 x 16A 230V outputs. Therefore providing a very useful range of power outputs to run a variety of equipment.
All of the switchgear and Tri-rated wiring are housed within a polyethene enclosure. Additional features include a recessed socket and switchgear panels for mechanical protection. Transparent windows have been incorporated to allow visual identification of the switchgear status and allow access in the event of a trip. The enclosure incorporates integrated carry handles, common stacking rails, external brass earth stud and all necessary electrical hazard warning identification.
The box is fabricated from black 10mm thick 300-grade high-density polyethene. This offers good impact resistance, chemical resistance and high rigidity. The density of 0.96 g/cm³, less than 0.01% moisture absorption, service temperature from -50 to +80°C with greater than 1014 surface resistance. IK09 Rated.
63A 400V Type 4 features the following outputs:
L1 – 63A 230V
L2 – 63A 230V
L3 – 2 x 16A 230V and 2 x 32A 230V
