125A 400V DISTRIBUTION PANEL

The 125A 400V Type 1 distribution offers RCBO protection and preset earth leakage relays. Constructed within a flight case. Features several output types.

125A 400V TYPE 1

Share

Description

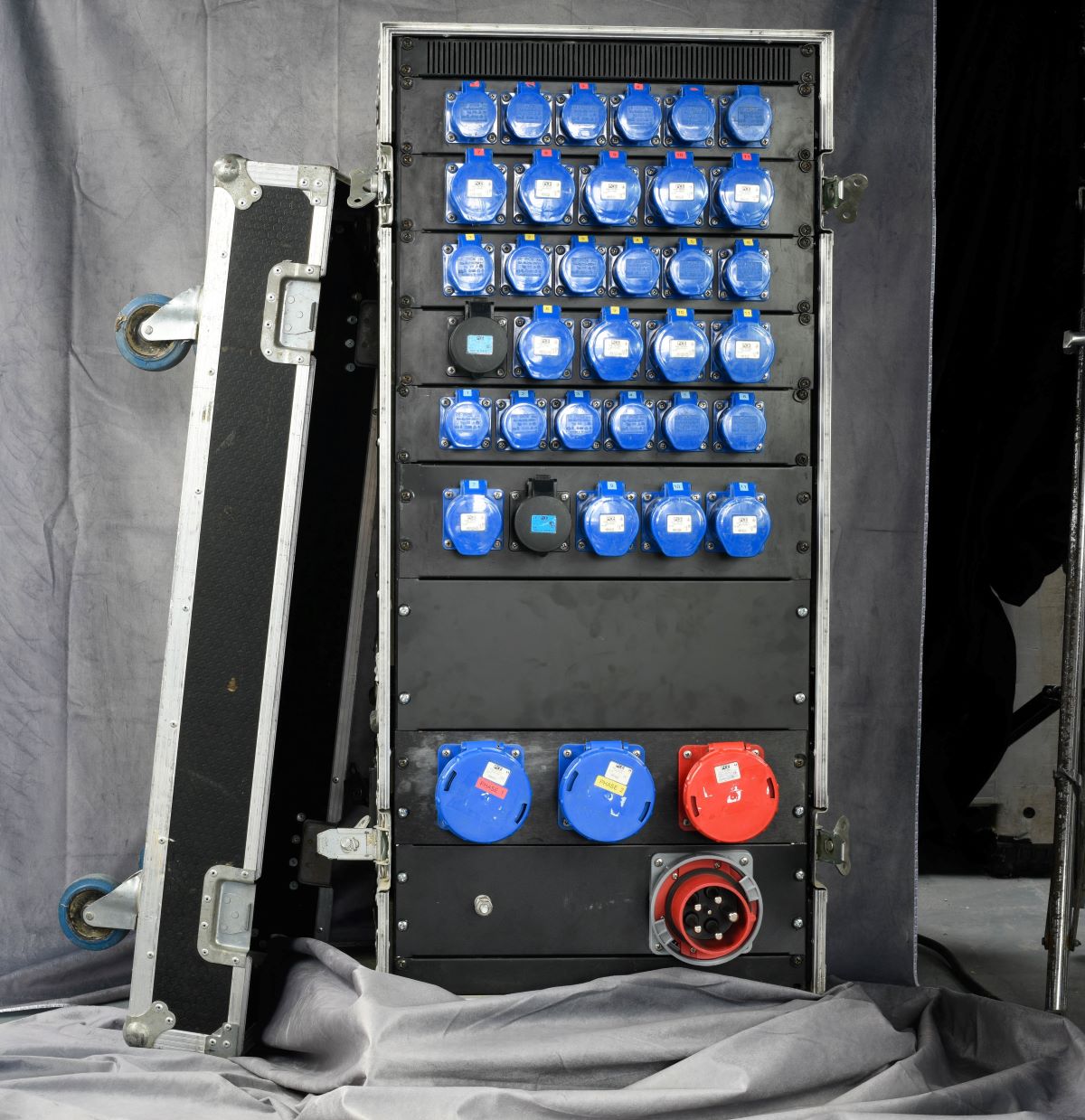

The 125A 400V distribution panel offers RCBO protection and also preset earth leakage relays. This distribution panel has been constructed within a flight case, therefore it is straightforward to set up. Distribution boards have been designed to distribute temporary power from one area to another. The flight case is constructed from 10mm thick plywood with black scratch-resistant outer foil. In addition, the panel is fitted with front and back covers, four wheels and carry handles, this distribution panel is easy to manoeuvre into place.

Specifications of the 125A 400V distribution panel

  • Input: 125 Amp 400 Volt with three Live, one Natural and one Earth
  • Phase One Output:
    • 6 X 16A 230V with RCBO protection
    • 5 X 32A 23OV with RCBO protection
    • 1 X 63A 230V with presettable earth leakage relays
  • Phase Two Output:
    • 6 X 16A 230V with RCBO protection
    • 5 X 32A 23OV with RCBO protection
    • 1 X 63A 230V with presettable earth leakage relays
  • Output Phase Three:
    • 6 X 16A 230V with RCBO protection
    • 5 X 32A 23OV with RCBO protection
    • 1 X 63A 400V with presettable earth leakage relays
  • Panel Meter
  • Earth Stud

In addition, we have available 125A 415V cables
